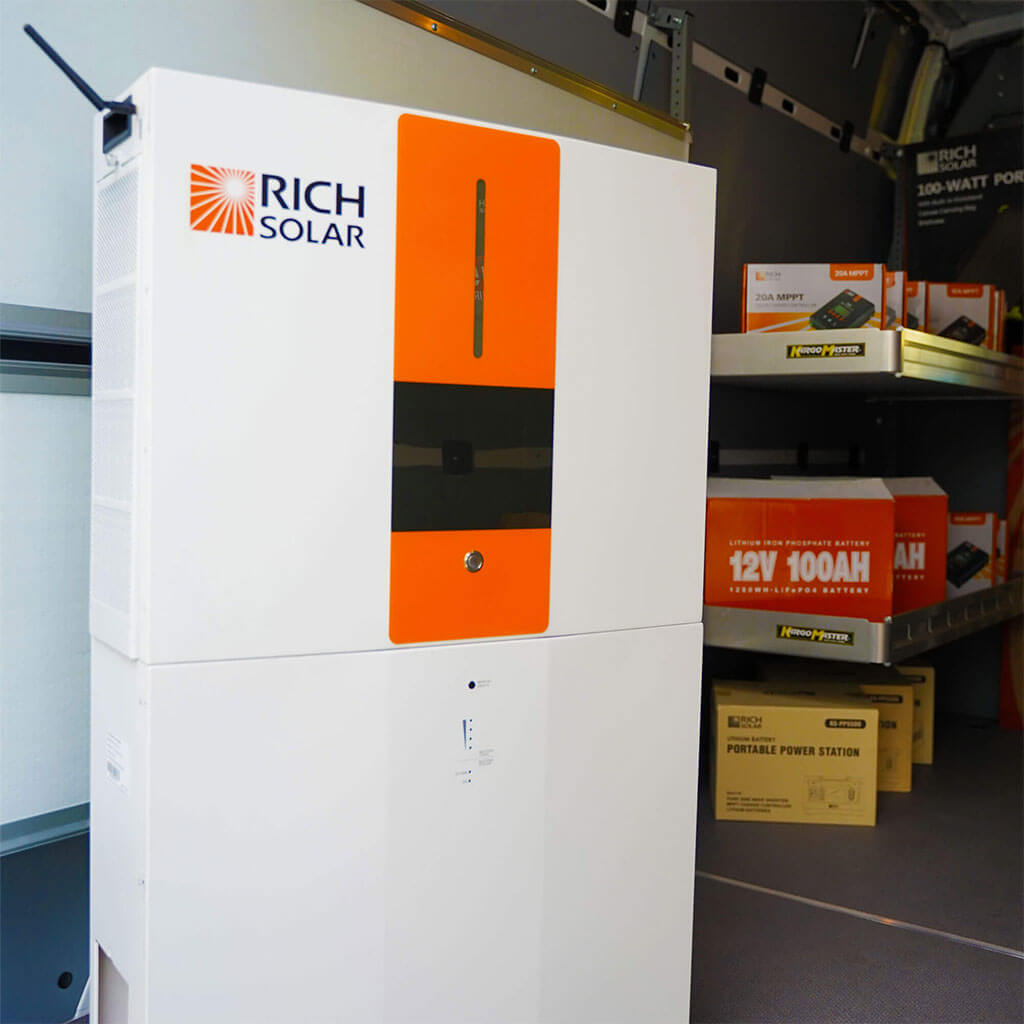

RICH SOLAR All-in-One Energy Storage System
Product Description
The RICH SOLAR All-in-One Energy Storage System (Model RS-A10) is a comprehensive, integrated solution that provides reliable, clean energy for off-grid living, backup power, and sustainable energy independence. Combining a high-efficiency inverter, advanced MPPT charge controller, and a robust lithium battery into a single compact unit, this system simplifies installation and operation for residential, commercial, and remote applications.
Key Features
Integrated Design: Combines inverter, charge controller, and lithium battery into one streamlined unit, reducing installation complexity and space requirements.
High-Efficiency Inverter: A 6.5kW pure sine wave inverter ensures stable and clean power output, making it suitable for sensitive electronics and appliances.
Robust Battery Storage: Includes a 5.12kWh LiFePO₄ battery with a 51.2V nominal voltage, offering long cycle life and enhanced safety features.
Dual MPPT Charge Controllers: Features two Maximum Power Point Tracking (MPPT) controllers with a combined capacity of up to 120A, optimizing solar energy harvest.
Flexible Power Sources: Compatible with solar panels, utility grid, and generators, providing versatile charging options.
Smart Energy Management: Programmable supply priority settings allow users to customize energy sources between PV, battery, or grid.

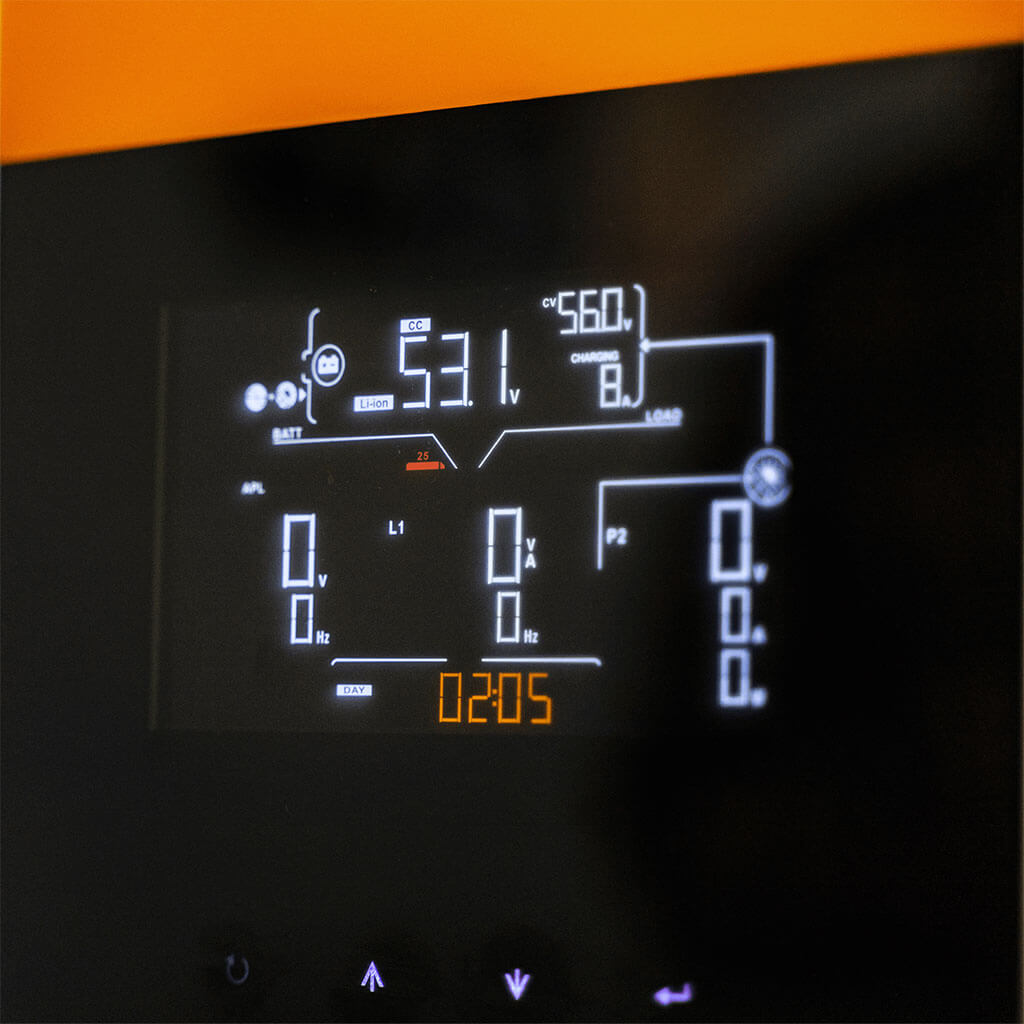

Advanced Monitoring: Equipped with multiple communication interfaces (USB, RS232, SNMP, Modbus, GPRS, Wi-Fi) and supports real-time monitoring via Android and iOS applications.
Scalable Solution: Supports lithium battery expansion to accommodate growing energy needs.
Technical Specifications
Battery Information:
Model: RS-A10
Capacity: 5.12kWh (100Ah at 51.2V)
Nominal Voltage: 48VDC
Max Continuous Discharge Current: 120A
Max Discharge Current (1 min): 192A
Charge Voltage: 56V (Full), 52.5V (Float)
Discharge Voltage: 42V (Full Discharge)
Protection: Built-in Battery Management System (BMS) and circuit breaker
System Specifications:
Rated Output Power: 6,500W
Max PV Input Power: 8,000W
MPPT Voltage Range: 90–230VDC
Max PV Open Circuit Voltage: 250VDC
Max Solar Charge Current: 120A
AC Input Voltage Range: 90–140VAC (computers), 80–140VAC (home appliances)
Max AC Input Current: 60A
Nominal Output Voltage: 120VAC
Conversion Efficiency: 93% (DC to AC)
Physical Dimensions:
System Dimensions (D x W x H): 19.7" x 26" x 49.2"
Compliance and Certifications:
IEC 62619, EN 61000-6-3, EN 61000-6-1, UKCA, UN38.3, UL 1741, CSA C22.2 No.107.1-16, FCC Part 15B
Ideal Applications
Off-Grid Homes and Cabins: Reliable power supply for remote living without grid access.
Backup Power Systems: Ensures uninterrupted power during outages for critical appliances and systems.
Remote Commercial Sites: Provides energy independence for businesses in isolated locations.
Mobile and Temporary Installations: Suitable for RVs, mobile clinics, and temporary event setups.
Experience seamless energy integration with the RICH SOLAR All-in-One Energy Storage System, available now at SolarWiseHQ. Empower your energy independence with a solution that's efficient, scalable, and built for the future.
